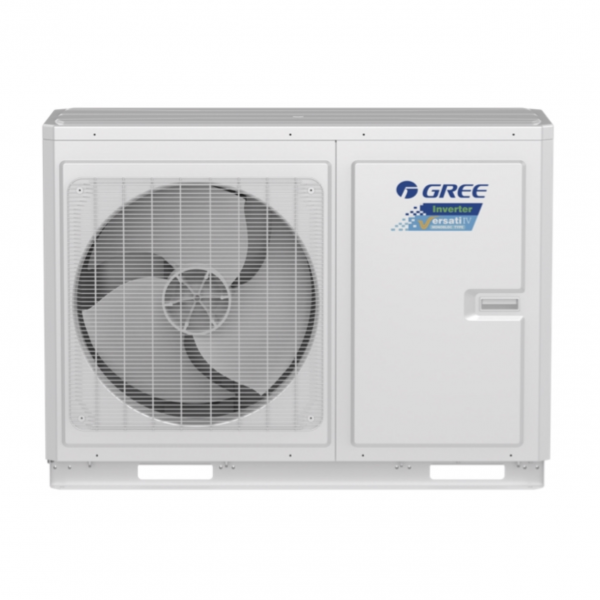

The Gree Versati III Monobloc heat pump is easy to install because it is an outdoor unit only. With an output of 4 to 16kW, these heat pumps can
be combined with LT floor heating or fan coil units and radiators. The high temperature output of the Versati III will allow for a retrofit installation to be possible which will accommodate most wet radiator systems.
The Gree Versati III can be combined with most hot water storage tanks, making it the perfect solution to accommodate your domestic hot water requirements.
Capacity
Floor Heating: 12 kW
Floor Cooling: 12 kW
Power Input
Floor Heating: 2.4 kW
Floor Cooling: 2.4 kW
EER Cooling (floor cooling): 4.90
COP Heating (floor heating): 4.94
Capacity
Heating (Fan coil or Radiator): 13.00 kW
Cooling (for Fan coil): 11.10 kW
Power Input
Heating (Fan coil or Radiator): 3.4kW
Cooling (for Fan coil): 3.6kW
EER2 Cooling (for Fan coil): 3.10
COP2 Heating (Fan coil or Radiator): 3.77
Power Supply V/Ph/Hz: 230/1/50
Rated input
Cooling: 6.854+6.000kW
Heating: 3.9kW
Rated current
Cooling: 17.00A
Heating: 30.00A
Refrigerant Type: R32
Charge: 2.20 kg
Control: Electronic Expansion Valve
Heat exchanger (Water side)
Type: Brazed Plate HEX
Water Flow Volume: 33 l/m
Inlet/Outlet Water Pipe Diameter: 25mm
Sanitary water Temperature Range: 40~80°C
Outflow Water Temperature Range
Cooling to Fan Coil: 7°C
Cooling to Floor:18°C
Heating to Fan Coil: 45°C
Heating to Floor: 35°C
Operating Range Outdoor Temperature (DB)
Cooling: -15~48°C
Heating: -25~35°C
Water Heating: -25~45°C
Sound Pressure Level
Cooling: 54 dB(A)
Heating: 56 dB(A)
Dimensions
Outline (HxWxD): 878x1206x445mm
Packaged (HxWxD): 1020x1338x553mm
Weight
Net: 142kg
Gross: 161kg
